A330 CQ PROGRAM 2015 - 2016


Updated 1/11/2017 - New RTS, R9 and R18, & RAD profiles now available!

URGENT: PLEASE SEND CQ SIM INTEL ASAP!
I really need your input on the SPOTS, and non-normal events that occurred during your ride so I can construct a new matrix of the scenario events. Please send me a summary of your experiences in the simulator to:
busdriver@hky.com

Note: There will no longer be any SPV 100 questions ... they are history!
The Memory Items and Limitations are included in the A330 Fact Sheet.
Systems & Limitations Validation Questions are included in the A330 Recurrent Training Questions Sheet-R9 and A330 Recurrent Training Questions Sheet-R18

The new A330 Training Guide for Continuing Qualification is available on aapilots.com>Training & Quals>Training Home>Recurrent Training>330. It important you review the CQ Guide in its entirety, as well as the slides of the respective R9 or R18 briefings.

The R9 consists of:
1. One day of classroom training
2. One day of recurrent simulator training (RTS)
3. One day for the RLE, which has a one leg city pair evaluation, and Recurrent Advanced Training (RAD)

Nine months later, pilots will return for the R18 that involves:
1. One day of classroom training
2. One day of recurrent simulator training (RTS)
3. One day for the Maneuvers-based evaluation (RVA) and RAD

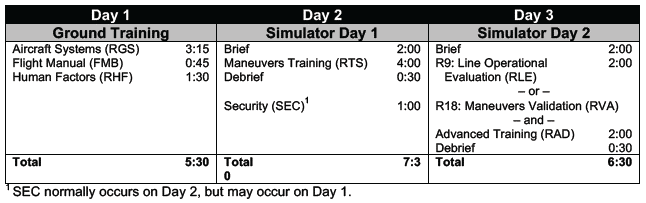

Continuing Qualification Overview


RECOMMENDED STUDY RESOURCES
Simulator Callouts / Approach Briefing Guide
Captain A330 Flows Guide
F/O A330 Flows Guide
A330 Fact Sheet
A330 Recurrent Training Questions Sheet

A330 Training Guide - www.aapilots.com > Training & Quals > Training Home > A330
A330 OM Volumes I and II
Exterior Preflight
Aircraft Systems
FM
Flows
Limitations - OM1 Chapter 1
Memory Items - QRH page IV: Undue Activation of Alpha Protection
Review QRH procedures and OD pages

Review RNAV (RNP) SAAAR, ECAM Trainer, and Video modules: Wings -> LearningLink -> Reference Material -> Aircraft
Appropriate SIDs, STARs, Airport Advisory Pages, Company Charts (former 10-7 pages), and Approach Plates (iPad JeppFD)


GROUND TRAINING (DAY 1)

Aircraft Systems
Flight Manual
Human Factors
Security (Day 2, but may occur on Day 1)

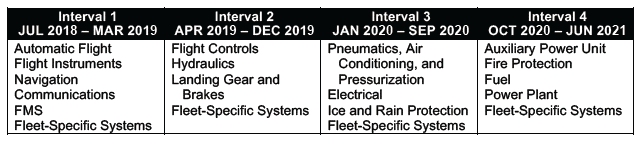

Training Intervals


RTS - RECURRENT TRAINING SIMULATOR DAY 2

The Recurrent Training Simulator (RTS) is a maneuver based session conducted by Simulator Instructors or Check Airmen during both the R9 and R18 recurrent training periods. The R18 briefing period is intended to review the profiles and procedures necessary to successfully complete an RLE or RVA.


The RTS for both the R9 and R18 are identical and interchangeable. These required maneuvers include the same First Look, Mandatory, and Fleet Specific Variable required maneuvers for the current training cycle. Performance must be to the Qual Standards proficiency before you will continue on to the R9 or R18. During the RTS, each pilot will fly all First Look and RTS Fixed Maneuvers applicable to duty position as Pilot Flying. First Look Maneuvers will not be briefed prior to the pilot’s first attempt in the simulator. The CAT III approach and landing maneuvers required for recertification (Landing and Missed Approach from lowest approach authorized) will be demonstrated to the instructor during the RTS period.


Anonymous performance and proficiency data is collected on each crewmember separately during the RTS session. Since the RTS is a proficiency based session conducted prior to the RLE (LOE) or RVA (Maneuvers Validation), training will continue until satisfactory performance is achieved on any maneuver in which performance was first demonstrated to be unsatisfactory. The instructor will recommend the crewmember progress to the RLE or RVA session or additional training if required.

It will be necessary to have this package on your iPad during your session.

Your instructor will expect you to know Limitations and Memory Items. Your training will include the following maneuvers and events:

Rejected Takeoff
Engine Fail V1 to 800' AFL
O2 Mask Use
Engine Out Approach
Engine Out Landing
Engine Out Missed Approach
Holding CAT III Approach
Go-Around/Missed Approach
Autoland
RNAV Departure
Systems Non-Normal
Emergency Landing
Ground Evacuation
(E)GPWS
RNAV Approaches
FMC Work
Automation Level Change
Non-ILS Approach
Engine Fail Critical Phase of Flight

RTS Maneuvers
First Look Maneuvers
   This maneuver will not be briefed prior to the RTS
   Engine Out ILS Approach and Landing
Mandatory Maneuvers:
   Ground Evacuation
   Engine Failure During Critical Phase
   Engine Out Landing or Missed Approach
   CAT III Approach (Landing and Missed Approach from lowest minimums authorized.)
   CAT I Approach (Minimum of 2, 1 per pilot, 1 to missed approach, 1 to landing.)
   Non ILS Approaches
   Visual Landing (Minimum 2: Not Autoland)
   Miscellaneous Emergency (Minimum 1: Emergency Descent, Ground Evacuation, Emergency Landing, Driftdown, EGPWS, TCAS)
   Adverse Environmental Conditions
   Automation Level 1 Aircraft Handling

RTS SUMMARY - CA/FO Paired
SPOT PF MANEUVERS REFERENCE
1 CA EDDF Crosswind Takeoff, NADP 1 Climb, RNAV SID, TCAS, VOR Approach, Missed Approach, CFIT, RNAV Approach, Crosswind Landing

* EDDF 10-9A1
* OM1 2d.2.5 Crosswind Takeoff
* OM1 2d.1 Noise Abatement
* OM1 2f.9 and 2f.10 Non-ILS Approaches
* OM1 2g: Go Around
* QRH OD-9 thru OD-11 Managed Non-ILS Approaches
* Simulator Callouts Guide: Takeoff, Managed Non-ILS Approach
* OM1 2i.5 TCAS Warnings
* OM1 2i.4 EGPWS
* OM1 2g.14: Crosswind Landing

2 FO EDDF Crosswind Takeoff, NADP 1 Climb, RNAV SID, TCAS, VOR Approach, Missed Approach, CFIT, RNAV Approach, Crosswind Landing

* EDDF 10-9A1
* OM1 2d.2.5 Crosswind Takeoff
* OM1 2d.1 Noise Abatement
* OM1 2f.9 and 2f.10 Non-ILS Approaches
* OM1 2g: Go Around
* QRH OD-9 thru OD-11 Managed Non-ILS Approaches
* Simulator Callouts Guide: Takeoff, Managed Non-ILS Approach
* OM1 2i.5 TCAS Warnings
* OM1 2i.4 EGPWS
* OM1 2g.14: Crosswind Landing

3 CA EDDF Low Vis Takeoff, NADP 1 Climb, RNAV SID, CATIII Dual Approach, Go Around, CATIII Single Approach, Autoland

* EDDF 10-9A1
* OM1 2d.2: Low vis TO
* OM1 2f.7: ILS CAT II/III
* OM1 2g: Go Around
* OM1 2i.1: Holding
* QRH OD-3 Takeoff Alternate / Takeoff Minimums
* QRH OD-5 thru 8 Approah Minimums / CAT II/III
* Simulator Callouts Guide: Takeoff, ILS CAT II/III, Go-Around





  Break
4 CA Flight Envelope Maneuvering, Clean Stall, Takeoff Stall, Stall on Approach * OM1 2i.6: Stalls
* OM1 2i.7 Upset Recovery
* Simulator Callouts Guide: Stall Recovery
5

FO

Flight Envelope Maneuvering, Clean Stall, Takeoff Stall, Stall on Approach * OM1 2i.6: Stalls
* OM1 2i.7 Upset Recovery
* Simulator Callouts Guide: Stall Recovery
6 CA EDDF Takeoff Low Vis, NADP 1 Climb, Engine Fire/Failure at V1, CAT I ILS, Engine Failure—Automation Level 2 Approach, Crosswind Landing * EDDF 10-9A1
* OM1 2d.2: Low vis TO
* OM1 2d.8: Loss of Thrust At or Above V1
* OM1 2f.4.4: Engine-Out Procedures
* OM1 2f.4: ILS CAT I
* OM1 2g.14: Crosswind Landing
* OM1 2.9.5: Automation Levels (AP Off, FD On)
* Simulator Callouts Guide: Loss of Thrust; CAT I ILS
7 FO EDDF Takeoff Low Vis, NADP 1 Climb, Engine Fire/Failure at V1, CAT I ILS, Engine Failure—Automation Level 2 Approach, Crosswind Landing * EDDF 10-9A1
* OM1 2d.2: Low vis TO
* OM1 2d.8: Loss of Thrust At or Above V1
* OM1 2f.4.4: Engine-Out Procedures
* OM1 2f.4: ILS CAT I
* OM1 2g.14: Crosswind Landing
* OM1 2.9.5: Automation Levels (AP Off, FD On)
* Simulator Callouts Guide: Loss of Thrust; CAT I ILS
8 BOTH EDDF Rejected Takeoff, Evacuation * OM1 2d.6: Rejected Takeoff
* QRH Back Cover
RTS SUMMARY - FO/FO Paired
SPOT PF MANEUVERS REFERENCE
1 FO-1 EDDF Crosswind Takeoff, NADP 1 Climb, RNAV SID, TCAS VOR Approach, Missed Approach, CFIT, RNAV Approach, Crosswind Landing * EDDF 10-9A1
* OM1 2d.2.5 Crosswind Takeoff
* OM1 2d.1 Noise Abatement
* OM1 2f.9 and 2f.10 Non-ILS Approaches
* OM1 2g: Go Around
* QRH OD-9 thru OD-11 Managed Non-ILS Approaches
* Simulator Callouts Guide: Takeoff, Managed Non-ILS Approach
* OM1 2i.5 TCAS Warnings
* OM1 2i.4 EGPWS
* OM1 2g.14: Crosswind Landing
2 FO-2 CATIII Single Approach, Go Around * OM1 2f.7: ILS CAT II/III
* OM1 2g: Go Around
* OM1 2i.1: Holding
* QRH OD-5 thru 8 Approah Minimums / CAT II/III
* Simulator Callouts Guide: ILS CAT II/III, Go-Around
3 FO-1 Flight Envelope Maneuvering, Clean Stall, Takeoff Stall, Stall on Approach

* OM1 2i.6: Stalls
* OM1 2i.7 Upset Recovery
* Simulator Callouts Guide: Stall Recovery

4 FO-1 EDDF Takeoff Low Vis, NADP 1 Climb, Engine Fire/Failure at V2, CAT I ILS, Engine Failure—Automation Level 3 Approach, Crosswind Landing * EDDF 10-9A1
* OM1 2d.1 and 2d.2 Takeoff
* OM1 2d.8 Loss of Thrust At or Above V1
* OM1 2d.1 Noise Abatement
* OM1 2f.4: ILS CAT I
* OM1 2g.14: Crosswind Landing
* QRH OD-5 thru OD-6 Approach minimums
* Simulator Callouts Guide: Loss of Thrust at or above V1 and ILS CAT I
5

FO-1

EDDF Rejected Takeoff, Evacuation * OM1 2d.6: Rejected Takeoff
* QRH Back Cover




  Break
6

FO-2

EDDF Crosswind Takeoff, NADP 1 Climb, RNAV SID, TCAS, VOR Approach, Missed Approach, CFIT, RNAV Approach, Crosswind Landing * EDDF 10-9A1
* OM1 2d.2.5 Crosswind Takeoff
* OM1 2d.1 Noise Abatement
* OM1 2f.9 and 2f.10 Non-ILS Approaches
* OM1 2g: Go Around
* QRH OD-9 thru OD-11 Managed Non-ILS Approaches
* Simulator Callouts Guide: Takeoff, Managed Non-ILS Approach
* OM1 2i.5 TCAS Warnings
* OM1 2i.4 EGPWS
* OM1 2g.14: Crosswind Landing
7 FO-1 CATIII Single Approach, Autoland * OM1 2f.7: ILS CAT II/III
* OM1 2g: Go Around
* OM1 2i.1: Holding
* QRH OD-5 thru 8 Approah Minimums / CAT II/III
* Simulator Callouts Guide: ILS CAT II/III, Go-Around
8 FO-2 Flight Envelope Maneuvering, Clean Stall, Takeoff Stall, Stall on Approach * OM1 2i.6: Stalls
* OM1 2i.7 Upset Recovery
* Simulator Callouts Guide: Stall Recovery
9 FO-2 EDDF Takeoff Low Vis, NADP 1 Climb, Engine Fire/Failure at V2, CAT I ILS, Engine Failure—Automation Level 3 Approach, Crosswind Landing

* EDDF 10-9A1
* OM1 2d.1 and 2d.2 Takeoff
* OM1 2d.8 Loss of Thrust At or Above V1
* OM1 2d.1 Noise Abatement
* OM1 2f.4: ILS CAT I
* OM1 2g.14: Crosswind Landing
* QRH OD-5 thru OD-6 Approach minimums
* Simulator Callouts Guide: Loss of Thrust at or above V1 and ILS CAT I

10

FO-2

EDDF Rejected Takeoff, Evacuation * OM1 2d.6: Rejected Takeoff
* QRH Back Cover
R9 - RECURRENT LOE (RLE) AND RAD

The R9 Recurrent LOE (RLE) and the Advanced Training (RAD) sessions will be conducted concurrently in the same 4-hour simulator session during the R9 training period. The RLE will immediately precede the RAD. The briefing will include a systems validation and aircraft inspection (walk around) check. During your briefing, you will be asked questions on the following: Exterior Preflight Systems Validation, Memory Items and Limitations, and as many other items as necessary to determine proficiency.

RLE Leg: PHL-CLT (see A330 CQ Training Guide), MEL – 49-1 APU SYSTEM. Some possible malfunctions that might require a divert to IAD:

Gen Fault
IDG Low Oil Pressure
Pressure Fault - Loss of Cabin
Pack Overheat
Pneumatic Wing Link
Ice Protection Fault
Pneumatic Wing Leak
Engine Anti-Ice Fault with Mod Icing

R18 -RECURRENT MANUEVERS VALIDATION (RVA) and RAD

R18 MANUEVERS VALIDATION (RVA) and the Advanced Training (RAD) sessions will be conducted concurrently in the same 4 hour simulator session during the R18 training period. The RVA will immediately precede the RAD. The RVA is a maneuvers based event. It is not intended to replicate line operations and does not require scenario based training.

R18 - RVA Briefing

Administrative
1. Existing Airman’s Certificate
2. Current FAA Class I physical
3. Check IPAD for current manuals


R18 Briefing Items
Systems, Limitations and Exterior Inspection Validation
Landing Performance
Mechanical Discrepancies after Gate Departure
Crew Cockpit Exit and Entry Procedure and Briefing
Windshear Proposed and Current Callouts and Procedures
Fuel; Dispatch Flight Planning Requirements (HFST)
Rapid Depressurization
Emergency Descent
Critical Terrain, Depressurization Routes
Unreliable Speed
ADR FAULTS A330-300 ECAM Exception
Take Over Pushbutton

R18 Recurrent Maneuvers Validation (RVA) Briefing Items
1. Role of Check Airman
2. Rules of Engagement
3. RVA Maneuvers:
* Low Visibility Takeoff
* CAT III Approach
* RNAV Approach
* Missed Approach/Go-Around
* Engine Failure on Takeoff
* Engine Out ILS Approach (Hand Flown)
4. Crew Responsibilities - Pilot Flying (PF) versus Pilot Monitoring (PM)
5. Simulator Malfunctions
6. Use of Headsets and Communications Procedures
7. Time Limits
8. Check Airman can use ”Ground Speed Times 2” or Reposition Feature

R18 RECURRENT MANEUVERS VALIDATION (RVA) CA/FO Paired
SPOT PF MANEUVERS REFERENCE
1 CA KCLT Low Visibility Takeoff / Crosswind * OM1 2d.2.1: Low vis TO
* OM1 2d.2.5
* QRH OD-3 Takeoff Alternate / Takeoff Minimums
2 BOTH KCLT CAT III ILS RWY 36C, Go-Around, Autoland * KCLT 11-7 plate
* OM1 2f.7: ILS CAT II/III
* OM1 2g: Go Around
* QRH OD-5 thru 8 Approah Minimums / CAT II/III
* Simulator Callouts Guide: Takeoff, ILS CAT II/III, Go-Around
3 FO KCLT Low Visibility Takeoff / Crosswind * OM1 2d.2.1: Low vis TO
* OM1 2d.2.5
* QRH OD-3 Takeoff Alternate / Takeoff Minimum
4 FO KCLT RNAV Approach RWY 36C, Missed Approach/Go-Around * KCLT plate 12-7
* OM1 2f.9.8: Managed Non-ILS Approaches
* OM1 2g: Go Around
* QRH OD-9 thru OD-11 Managed Non-ILS Approaches
* Simulator Callouts Guide: Managed Non-ILS Approach
5 CA KCLT RNAV Approach RWY 36C, Crosswind Landing * KCLT plate 12-7
* OM1 2f.9.8: Managed Non-ILS Approaches
* OM1 2g.14 Crosswind Landings
* QRH OD-9 thru OD-11 Managed Non-ILS Approaches
* Simulator Callouts Guide: Managed Non-ILS Approach
6 FO KCLT Takeoff, Engine Failure at V1, CAT I ILS Rwy 36C, Engine Failure—Automation Level 2, Crosswind Landing * KCLT 11-7 plate
* OM1 2d.8: Loss of Thrust At or Above V1
* OM1 2f.4.4: Engine-Out Procedures
* OM1 2f.4: ILS CAT I
* OM1 2g.14 Crosswind Landing
* OM1 2.9.5: Automation Levels (AP Off, FD On)
* ECAM Trainer
* Simulator Callouts Guide: Loss of Thrust; CAT I ILS
7 CA KCLT Takeoff, Engine Failure at V2, CAT I ILS Rwy 36C, Engine Failure—Automation Level 2, Crosswind Landing * KCLT 11-7 plate
* OM1 2d.8: Loss of Thrust At or Above V1
* OM1 2f.4.4: Engine-Out Procedures
* OM1 2f.4: ILS CAT I
* OM1 2g.14 Crosswind Landing
* OM1 2.9.5: Automation Levels (AP Off, FD On)
* ECAM Trainer
* Simulator Callouts Guide: Loss of Thrust; CAT I ILS
R18 RECURRENT MANEUVERS VALIDATION (RVA) FO/FO Paired
SPOT PF MANEUVERS REFERENCE
1 FO KCLT Low Visibility Takeoff / Crosswind * OM1 2d.2.1: Low vis TO
* OM1 2d.2.5
* QRH OD-3 Takeoff Alternate / Takeoff Minimums
2 FO KCLT CAT III ILS RWY 36C, Go-Around, Autoland * KCLT 11-7 plate
* OM1 2f.7: ILS CAT II/III
* OM1 2g: Go Around
* QRH OD-5 thru 8 Approah Minimums / CAT II/III
* Simulator Callouts Guide: Takeoff, ILS CAT II/III, Go-Around
3 BOTH KCLT Low Visibility Takeoff / Crosswind * OM1 2d.2.1: Low vis TO
* OM1 2d.2.5
* QRH OD-3 Takeoff Alternate / Takeoff Minimum
4 FO KCLT RNAV Approach RWY 36C, Missed Approach/Go-Around * KCLT plate 12-7
* OM1 2f.9.8: Managed Non-ILS Approaches
* OM1 2g: Go Around
* QRH OD-9 thru OD-11 Managed Non-ILS Approaches
* Simulator Callouts Guide: Managed Non-ILS Approach
FOs switch seats and repeat SPOTs 1 through 4 for FO 2
RAD (DAY 3 for R9 and R18) CA/FO Paired
SPOT PF MANEUVERS REFERENCE
1 CA Reactive Windshear: Takeoff at 100’ AGL, Approach at 1200’ AGL * OM1 2i.3: Windshear Precautions and Recovery
* Simulator Callouts Guide: Takeoff, Windshear
2 FO Reactive Windshear: Takeoff at 100’ AGL, Approach at 1200’ AGL * OM1 2i.3: Windshear Precautions and Recovery
* Simulator Callouts Guide: Takeoff, Windshear
3 CA Manual Flying (Automation Level 1 & 2): Normal Takeoff, Automation Level 1 Maneuvering During Climb, Altitude, Speed & Heading Change, Visual Approach * OM1 2.9.5: Automation Levels (AP Off, FD On)
4 FO Manual Flying (Automation Level 1 & 2): Normal Takeoff, Automation Level 1 Maneuvering During Climb, Altitude, Speed & Heading Change, Visual Approach * OM1 2.9.5: Automation Levels (AP Off, FD On)
5 BOTH Unusual Attitudes / Aircraft Upset * OMI 2i.7 Upset Recovery
RAD (DAY 3 for R9 and R18) FO/FO Paired
SPOT PF MANEUVERS REFERENCE
1 FO-1 Reactive Windshear: Takeoff at 100’ AGL, Approach at 1200’ AGL * OM1 2i.3: Windshear Precautions and Recovery
* Simulator Callouts Guide: Takeoff, Windshear
2 FO-1 Manual Flying (Automation Level 1): Takeoff, Manuevering, Visual Approach * OM1 2.9.5: Automation Levels (AP Off, FD On)
Switch Seats
3 FO-2 Reactive Windshear: Takeoff at 100’ AGL, Approach at 1200’ AGL * OM1 2i.3: Windshear Precautions and Recovery
* Simulator Callouts Guide: Takeoff, Windshear
4 FO-2 Manual Flying (Automation Level 1): Takeoff, Manuevering, Visual Approach * OM1 2.9.5: Automation Levels (AP Off, FD On)
5 BOTH Unusual Attitudes / Aircraft Upset * OMI 2i.7 Upset Recovery
It appears an enormous amount of variability has been designed into Day 3 of your adventure. Unlike the LOFTs in the past, check airmen now have a palette of scenarios and non-normals they are able to select from. This essentially means no two sessions will be alike. Using your intel reports, I'll add the events that have occurred to the list as I receive them. This means your particular ride will see some, but not all of the possible events that appear in the list.
Scenario Triggers
To be determined based on YOUR feedback ... * QRH
* Callouts
* ECAM Procedures


It is imperative you drop me a line as soon as you complete your CQ to let me know of any changes or additions to the above orals and scenarios. After you have recovered from your CQ jot down any notes on it while it's fresh in your mind and pass them along to me. The accuracy of the information posted above is only as good as the feedback I get from you guys and gals. Please pass along any additional details you feel would help.

Send your comments to: busdriver@hky.com
